Update 7:

When I got started on the front and is satisfied with the results so far:)


Markings before cutting begins:






There are holes to dvd burner, etc.. cut out:




The fan who will be at the bottom is ground out and the floor space:




After milling:




With fan:




Purchased with some well case from Lian Li that I should have in front:




Thanks to the sponsors!


Comments? :)
Logged

Mr.Anki

  • Case Mod Weenie
  • *
  • Karma: +0/-0
  • Offline Offline
  • Posts: 29
Re: Project: Construction of a ATX cabinet! - Mr.Anki
« Reply #11 on: August 28, 2009, 12:00:47 PM »

Update 8:

Have been working on with the front now, the overall profile of the second plate and arranged holes for the fan. Had to cheat a little by inserting a thin plywood plate behind the hole. It was difficult to spit out the profile of the car, then took to sawing out the hole with a jigsaw first, and then made round edges with a cutter.


End chat, here are some pictures:)

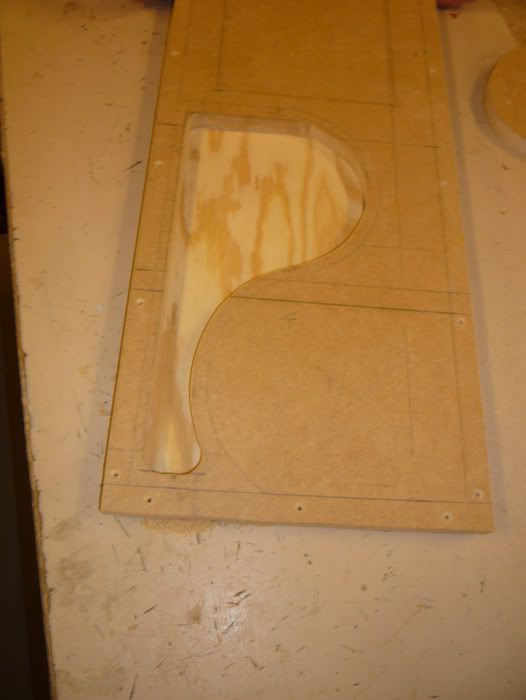

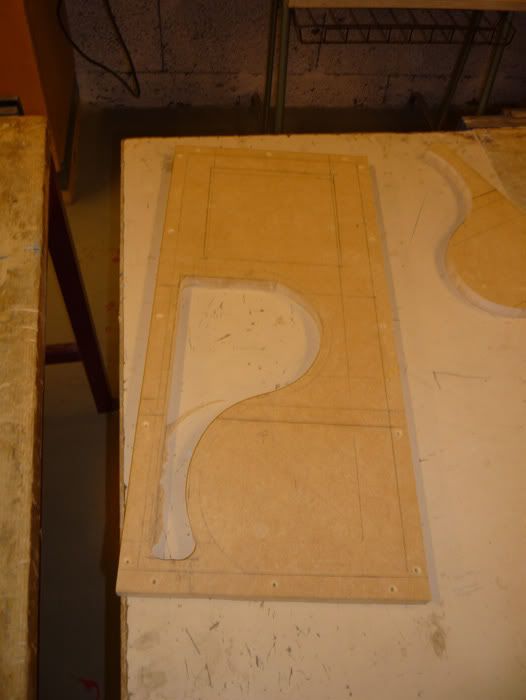

The first thing that was done was to cut out the hole with a jigsaw:




In the back I attached a plywood plate, so that not only is a hole there, but the mounting of the fan:

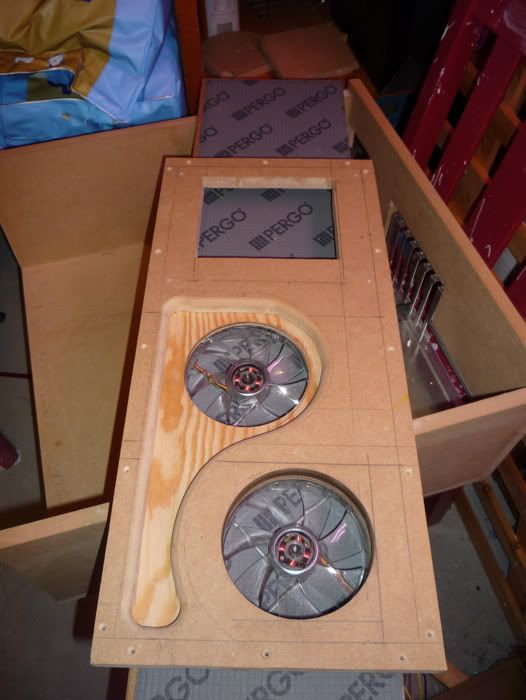

Drill holes for the fans:

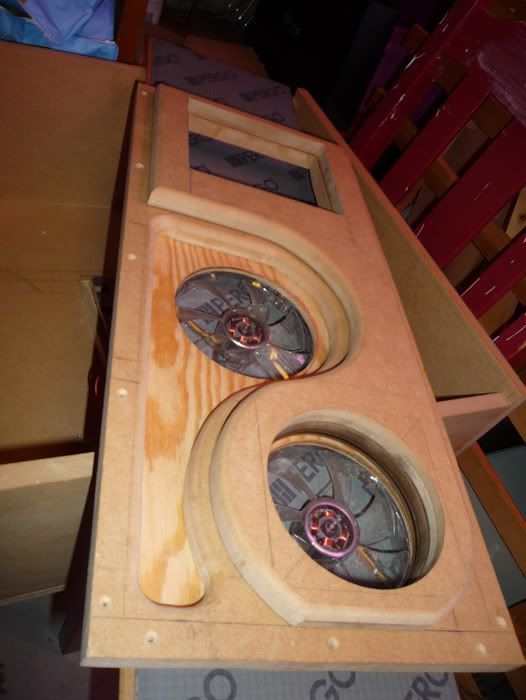

Used the cutter to make round edges, just like on the second disc:

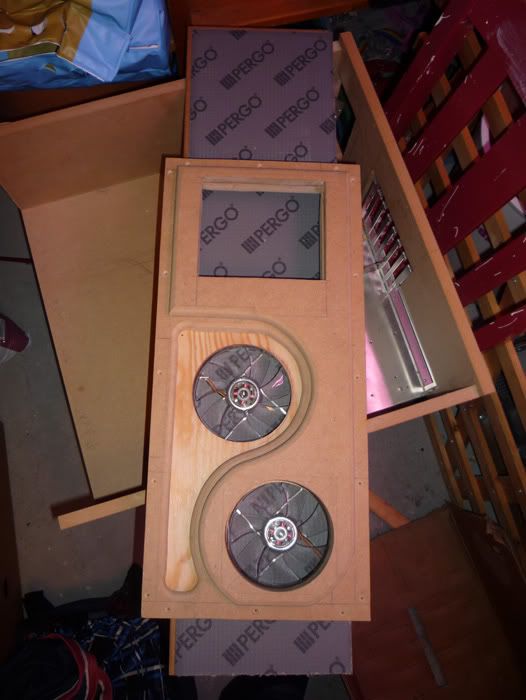

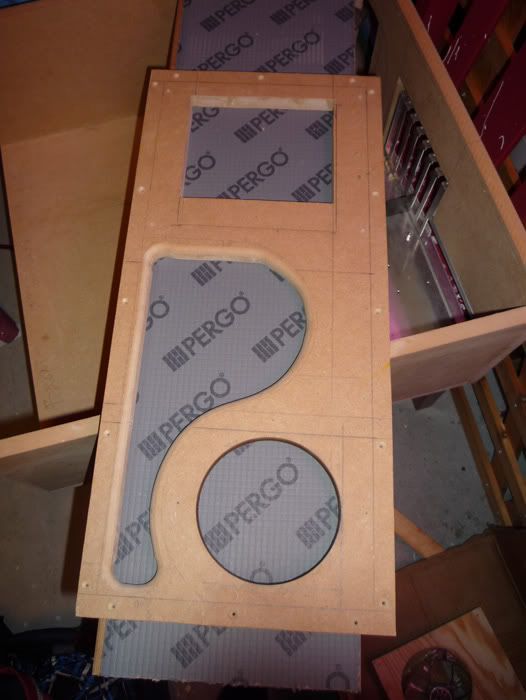

Here I have constructed both records:

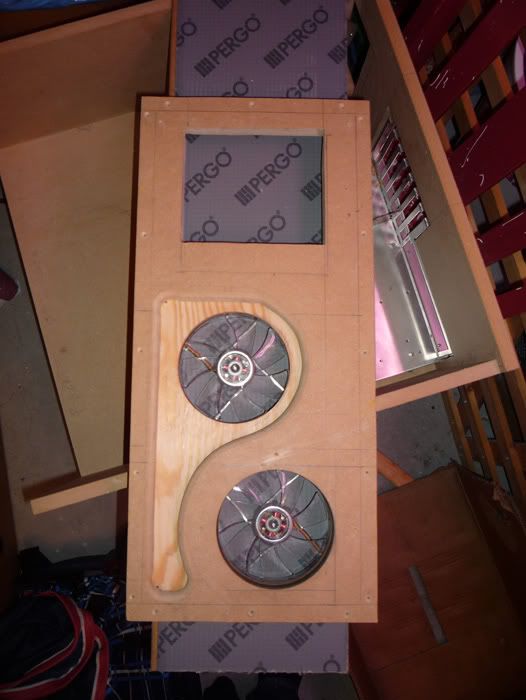

And here I tried with only one disc in fornt:

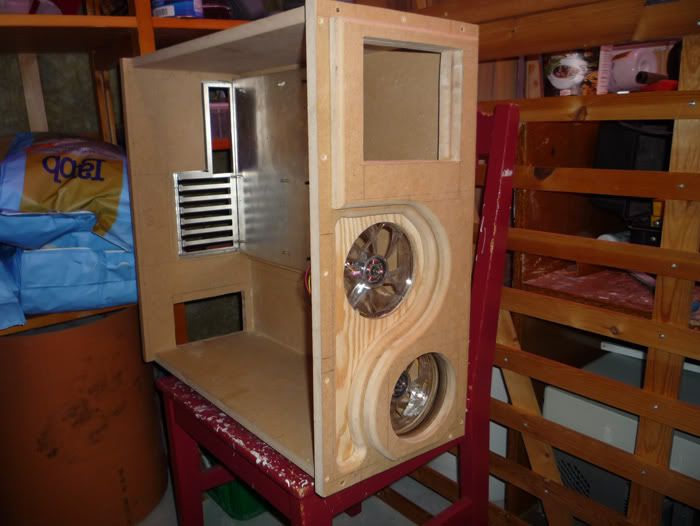

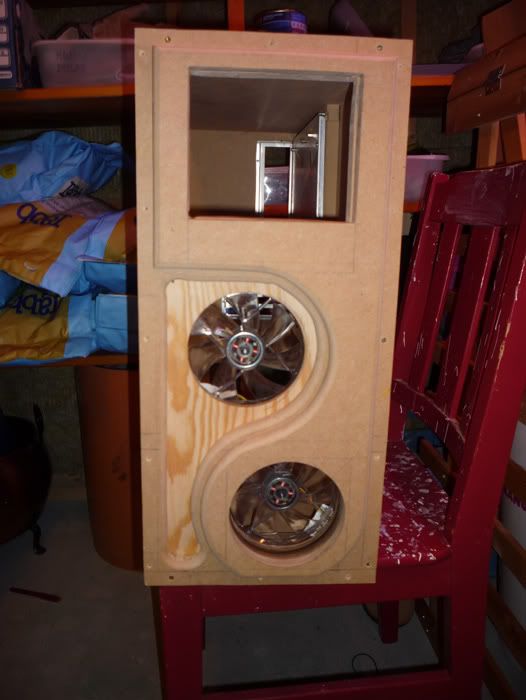

Here is the result:







Thanks to the sponsors!
